Serpentine Tube Bending Services
Precision serpentine coils and complex multi-bend tube assemblies for heat exchangers, condensers, and industrial thermal systems. Stainless steel, titanium, Inconel, and exotic alloys. Prototypes to production runs.
Request a Quote Call 952-881-5184What Is Serpentine Tube Bending?

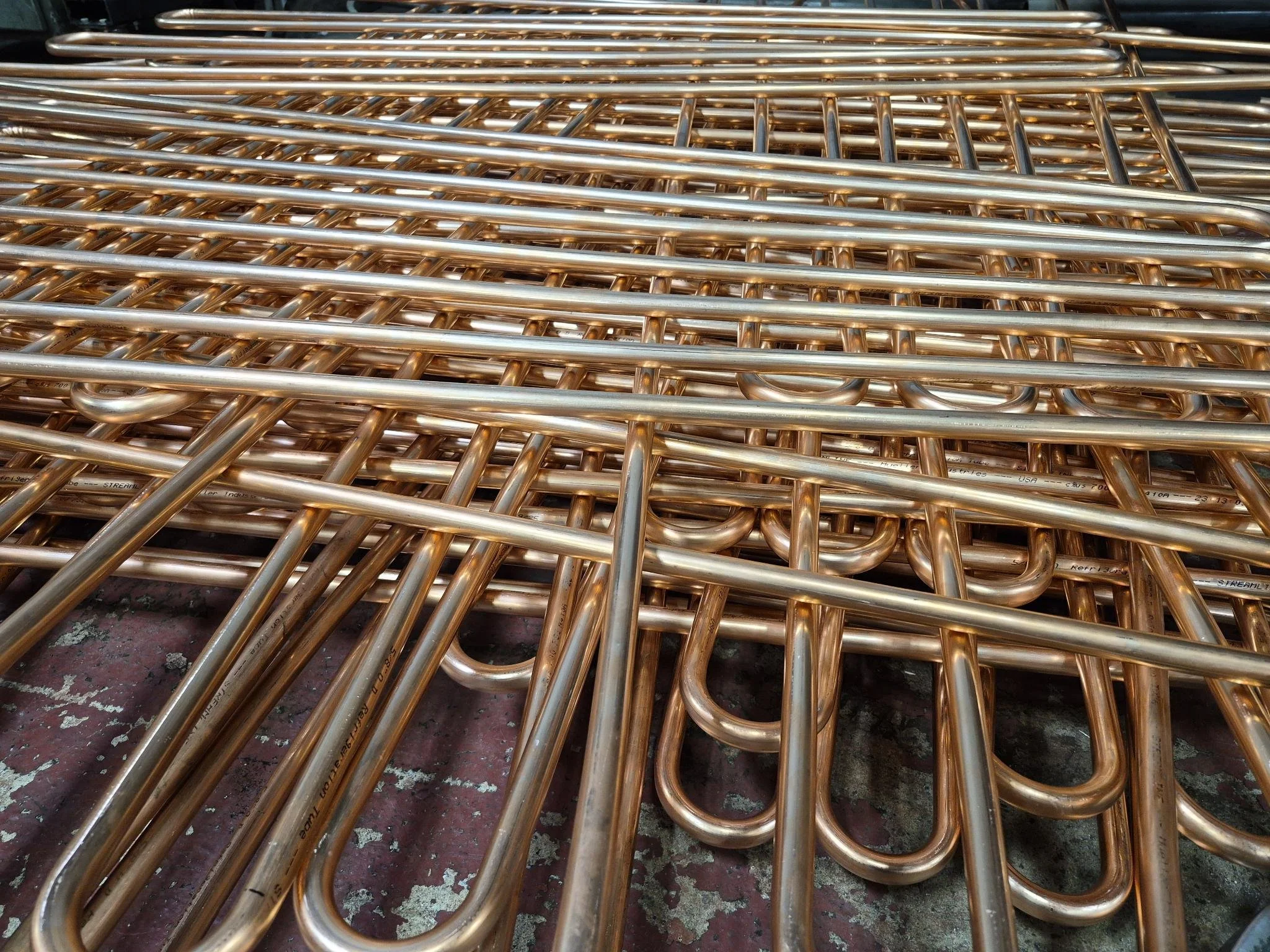

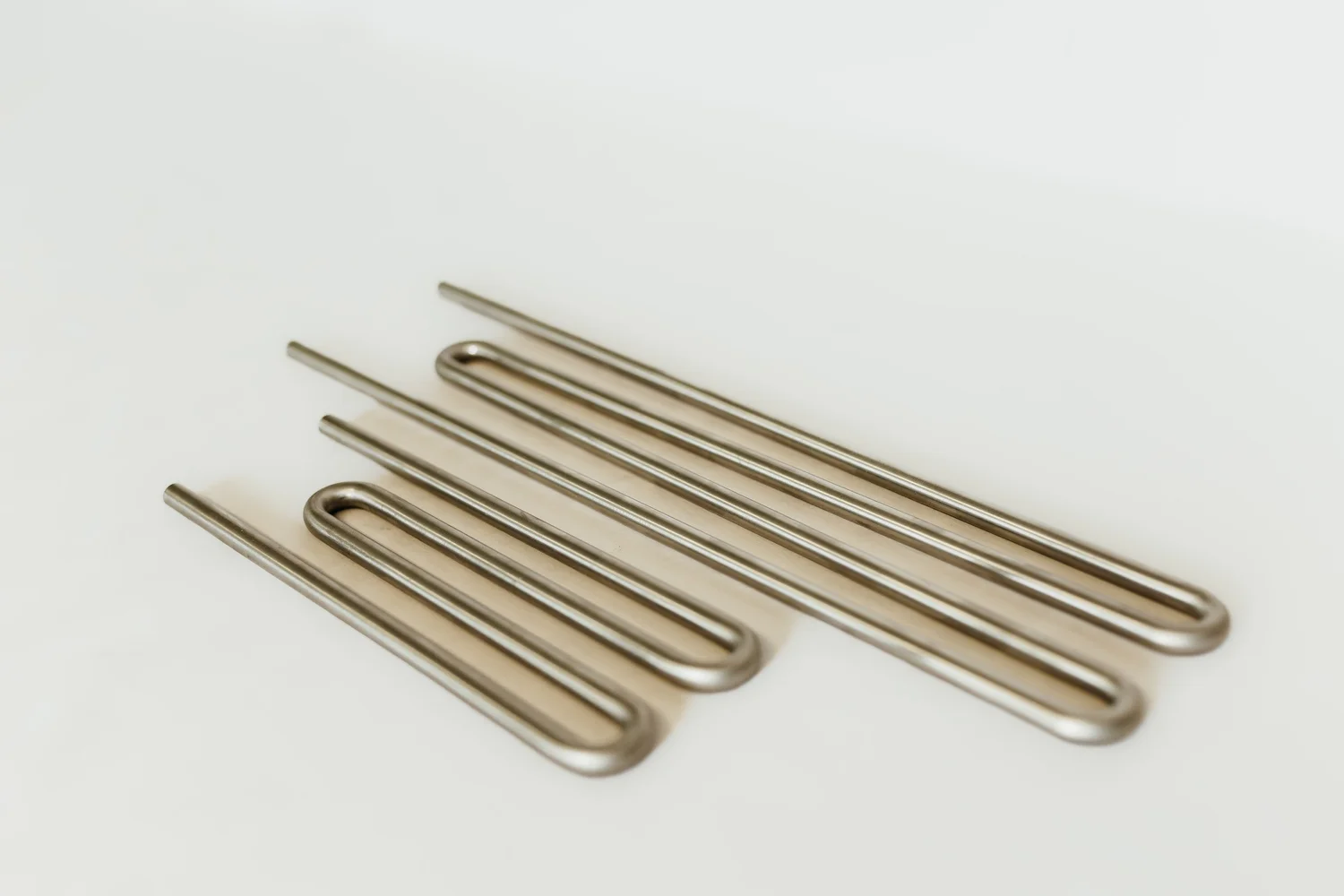

Serpentine tube bending creates continuous S-shaped or zigzag patterns in tubing, forming compact coil assemblies that maximize heat transfer surface area within a minimal footprint. These precision-formed serpentine coils are critical components in heat exchangers, condensers, evaporators, and industrial cooling systems where thermal efficiency is paramount.
Unlike standard tube bending, serpentine fabrication demands tight control over bend radius consistency, tube spacing, and planarity across dozens of sequential bends. A single deviation compounds across the coil, making serpentine bending one of the most technically demanding tube forming processes in the industry.
Our Serpentine Bending Capabilities
Ross Bending Dynamics combines CNC precision with decades of hands-on tube forming expertise to produce serpentine coils that meet the tightest engineering tolerances. Whether you need a single prototype coil or a recurring production run of 500 assemblies, we have the equipment, materials knowledge, and engineering mindset to deliver.
Tight-Radius Serpentine Coils
Multi-pass serpentine bends with consistent radii across 20, 40, or 60+ sequential bends. We maintain planarity and pitch tolerances that keep your assemblies fitting on first install.
Exotic Alloy Expertise
Serpentine coils in titanium, Inconel, Hastelloy, Monel, and duplex stainless steels. We understand the springback characteristics and heat-sensitivity of every alloy we bend.
Prototype to Production
From a single first-article coil to validate your heat exchanger design, through to recurring production lots. No minimum order quantities. Fast turnaround on prototypes.
Engineering & DFM Support
Send us your concept or CAD file and we will advise on bend radii, material selection, and design-for-manufacturability before you cut a single purchase order. Our engineering mindset is one of the three things that sets us apart.
Complete Fabrication
Serpentine bending is just the start. We provide TIG/MIG welding, brazing, end-forming, machining, and full assembly so your coils arrive ready to install — not as loose parts that need secondary processing.
Quality & Traceability
Full material certifications, first-article inspection reports, and process documentation for regulated industries. We bend to your print, verify to your spec, and ship with the paperwork you need.
Materials We Bend
We stock and process a wide range of tube materials for serpentine coil applications. If your project calls for an alloy not listed here, call us — chances are we have bent it before.
304 & 316 Stainless Steel
Titanium (Grade 2, Grade 5)
Inconel 625 & 718
Hastelloy C-276
Monel 400
Duplex & Super Duplex SS
Copper & Copper-Nickel
Carbon Steel
Aluminum (6061, 5052)
Chrome-Moly (4130)
Industries We Serve
Our serpentine coils and tube assemblies work inside critical systems across a range of demanding industries:
HVAC & Refrigeration
Condenser coils, evaporator assemblies, chiller tube bundles
Energy & Power Generation
Heat recovery systems, boiler tubes, superheater coils
Food, Dairy & Pharmaceutical
Sanitary serpentine coils, pasteurizer tubes, clean-in-place systems
Chemical Processing
Corrosion-resistant coils in Inconel, Hastelloy, and titanium for aggressive media
Aerospace & Defense
Precision coils for thermal management, hydraulic systems, and environmental control
Medical Devices & Life Sciences
Precision coils for sterilization equipment, diagnostic imaging systems, and surgical instrument cooling
Semiconductor
Ultra-clean coils for wafer processing equipment, chemical delivery systems, and thermal management in fab environments
OEM Manufacturing
Recurring production runs of serpentine assemblies for equipment builders
How It Works
1
Send Your Specs
Upload a drawing, CAD file, or describe your coil requirements via our quote form or email.
2
Engineering Review
Our team reviews for manufacturability and may suggest design optimizations to save cost or improve performance.
3
Quote & Approval
Receive a detailed quote with pricing, lead time, and material options. Typically within 24–48 hours.
4
Fabrication & Delivery
We bend, weld, inspect, and ship. First-article reports available. Prototypes in days, production on your schedule.
Why Engineers Choose Ross Bending Dynamics
We are not a commodity bending shop. Ross Bending Dynamics was built for the projects that other shops turn away — the exotic alloys, the tight-tolerance serpentine coils, the one-off prototypes that need to be right the first time. Here is what makes working with us different:
Speed
Quick-turn prototypes in days, not weeks. We understand that your timeline drives product launches and engineering milestones. We do not let tube bending become your bottleneck.
High-Mix Capability
We thrive on variety. One serpentine coil in titanium today, fifty stainless assemblies tomorrow, a Hastelloy prototype next week. Our shop is built for the job mix that overwhelms high-volume-only competitors.
Engineering Mindset
We do not just follow your print — we think about it. If a bend radius change saves you 20% on material cost or a fixture adjustment improves coil consistency, we will tell you before we start bending.
Frequently Asked Questions
What is the difference between serpentine bending and standard tube bending?
Standard tube bending typically involves one or a few bends in a single tube. Serpentine bending creates a continuous series of alternating bends (S-shapes or zigzag patterns) in a single length of tubing, forming a compact coil. This requires specialized tooling, precise bend-to-bend consistency, and careful control of tube springback across every pass.
What tube diameters can you serpentine bend?
We serpentine bend tubing from 1/16" to 3" outside diameter, depending on the material and bend radius requirements. Contact us with your specific dimensions and we will confirm feasibility.
Can you bend exotic alloys like titanium and Inconel into serpentine coils?
Yes. Exotic alloy serpentine bending is one of our core specialties. We routinely bend titanium, Inconel 625/718, Hastelloy C-276, Monel, and duplex stainless steels. Each alloy has unique springback and work-hardening characteristics that we have learned to manage over decades of fabrication experience.
What is your typical lead time for serpentine coils?
Prototypes and small batches typically ship in 1–2 weeks from order approval, depending on material availability. Production runs are scheduled based on quantity and complexity. Rush turnaround is available — call us to discuss your timeline.
Do you offer design-for-manufacturability (DFM) support?
Absolutely. Our engineering team reviews every serpentine coil project for manufacturability before production begins. We regularly suggest bend radius adjustments, material alternatives, or design modifications that reduce cost, improve consistency, or simplify assembly downstream.
Where is Ross Bending Dynamics located?
We are located in Bloomington, Minnesota, and serve customers nationwide. For exotic alloy and specialty serpentine bending, we work with engineers and OEMs across all 50 states. Regional customers in the Twin Cities, greater Minnesota, Wisconsin, Iowa, and the upper Midwest benefit from shorter shipping times and the option for local pickup.
